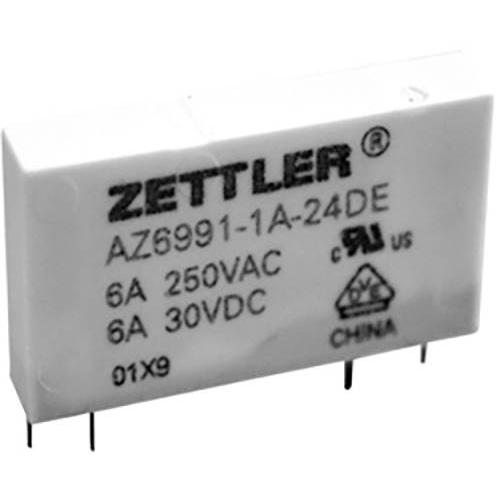

AZ6991-1A-12DE

Teknik Özellikler

RoHS

Non-Compliant

Kontak Formu

SPST-NO (1 Form A)

Contact Type

1 maker

Ürün Durumu

Active

Coil Voltage Dc

12 V

Switching Voltage Max

125V DC,400V AC

Uzunluk

28mm

Montaj Tipi

Through Hole

Release Time

4 ms

Max Switching Capacity

180W

Switching Current Max

8A

Response Time

8ms

Paket

Box

Coil Current

14.2 mA

Switching Voltage

400VAC, 125VDC - Max

Coil Voltage

12VDC

Pin Sayısı

4

Maks. Çalışma Sıcaklığı

85 °C

Contact Materials

AgNi

Must Release Voltage

0.6 VDC

Coil Nominal Voltage

12V DC

Min. Çalışma Sıcaklığı

-40 °C

Terminal Stili

PC Pin

Relay Type

General Purpose

Max Temperature

+85°C

Durability

1 x 10E7

Max Current Rating

6 A

Fall Time

4ms

Control Mode

monostable, 1 coil

Çalışma Sıcaklığı

-40°C ~ 85°C

Max Voltage Rating Ac

400 V

Content

1pc(s)

Must Operate Voltage

9 VDC

Yükseklik

15mm

Contact Rating Current

8 A

Genişlik

5mm

Dim

(L x W x H) 28 x 5 x 15 mm

Resistance Coil

848Ω

Connections

Solder pins

Throw Configuration

SPST
