AZ2704-2A-12DTWF

Teknik Özellikler

Uzunluk

50.5mm

Relay Type

General Purpose

Rohscompliant

Yes

Coil Nominal Voltage

12V DC

Max Switching Capacity

840W,8310VA

Coil Insulation

Class F

Ürün Durumu

Active

Operate Time

30 ms

Kontak Formu

DPST-NO (2 Form A)

Çalışma Sıcaklığı

-40°C ~ 105°C

Montaj Tipi

Socketable

Insulation Voltage

1500V

Max Pickup Voltage

16.8V DC

Seri

AZ2704

Connections

Solder pins

Coil Type

Non Latching

Coil Voltage

12VDC

Yükseklik

36mm

Resistance Coil

75Ω

Coilresistance

75 Ohms

Max Temperature

+105°C

Tip

AZ2704-2A-12DTWF

Paket

Box

Genişlik

33.5mm

Contact Rating Current

30 A

Contact Materials

AgSnO

Release Time

30 ms

Coil Current

160 mA

Must Release Voltage

0.6 VDC

Switching Voltage Max

150V DC,400V AC

Min Temperature

-40°C

Content

1pc(s)

Switching Voltage

400VAC, 150VDC - Max

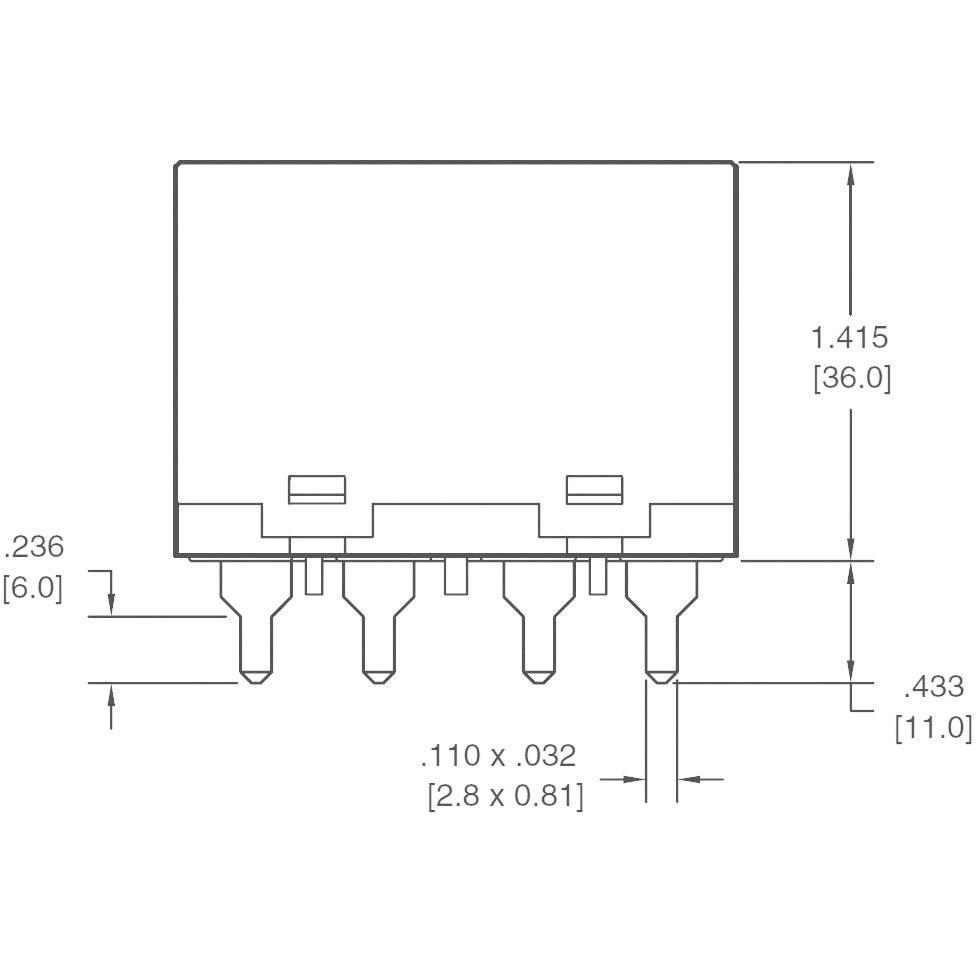

Dim

(L x W x H) 50.5 x 33.5 x 36 mm

Terminal Stili

Plug In, Quick Connect - 0.110 (2.8mm)

Must Operate Voltage

9 VDC

Switching Current Max

30A

Min Pickup Voltage

9V DC

Contact Type

2 makers

Control Mode

monostable, 1 coil
