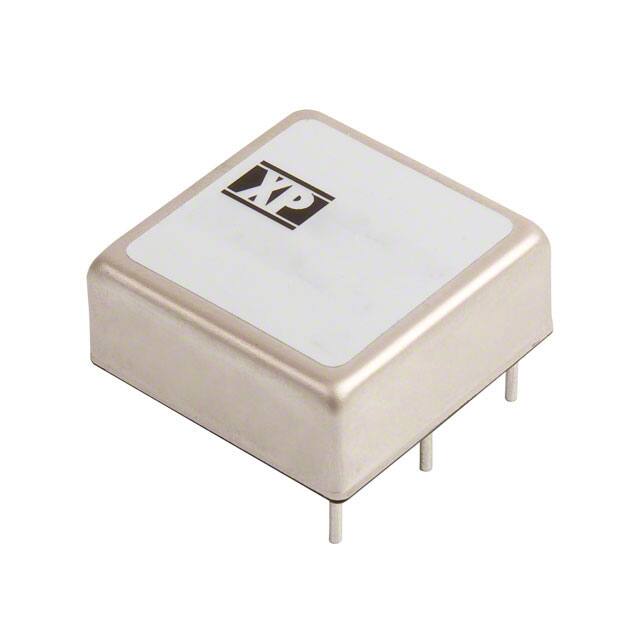

JCM1548S05

Teknik Özellikler

Terminal Pozisyonu

DUAL

Control Features

Enable, Active High

Jesd30 Code

S-XDMA-P6

Number Of Outputs

1

RoHS Durumu

ROHS3 Compliant

Tip

Isolated Module

Boyut / Ölçü

1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm

Yükseklik

9.906mm

Çalışma Sıcaklığı

-40°C~105°C

Montaj Tipi

Through Hole

Max Power Dissipation

15W

Reach Svhc

Unknown

Özellikler

Remote On/Off, OCP, OVP, SCP

Fabrika Tedarik Süresi

10 Weeks

Min Input Voltage Dc

36V

Ambalaj

Tube

Max Output Power

15W

Terminal Sayısı

6

Yayın Yılı

2010

Terminal Formu

PIN/PEG

Power Rating

15W

Max Output Current

3A

Seri

JCM (15W)

Trimadjustable Output

YES

Applications

ITE (Commercial)

Depth

25.4mm

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Efficiency

86%

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Output Voltage

5V

Nominal Output Voltage

5V

Output Current

3A

Input Voltagenom

48V

Operating Supply Voltage

48V

Current Output1

3A

Max Input Voltage Dc

75V

Montaj

PCB, Through Hole

Output Power

15W

Voltage Input Max

75V
