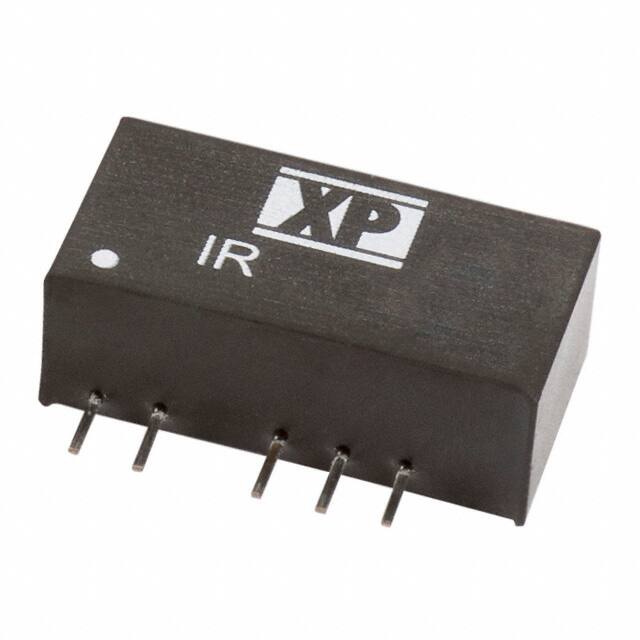

IR0505SA

Teknik Özellikler

Voltage Isolation

1kV

Montaj Tipi

Through Hole

Seri

IR (3W)

Max Output Current

600mA

RoHS Durumu

ROHS3 Compliant

Output Power

3W

Yayın Yılı

2011

Fabrika Tedarik Süresi

10 Weeks

Output Voltage

5V

Voltage Input Max

5.5V

Kılıf / Paket

7-SIP Module, 4 Leads

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

Unknown

Min Input Voltage Dc

4.5V

Parça Durumu

Active

Jesd30 Code

R-XSMA-P6

Max Power Dissipation

3W

Tip

Isolated Module

Input Voltagenom

5V

Efficiency

79%

Max Input Voltage Dc

5.5V

Output Current

600mA

Depth

19.5mm

Nominal Output Voltage

5V

Power Rating

3W

Terminal Formu

PIN/PEG

Boyut / Ölçü

0.77Lx0.28W x 0.39 H 19.5mmx7.2mmx10.0mm

Current Output1

600mA

Terminal Adımı

2.54mm

Genişlik

7.2mm

Max Output Power

3W

Number Of Outputs

1

Montaj

PCB, Through Hole

Nominal Input Voltage

5V

Yükseklik

9.906mm

Kurşunsuz Kodu

yes

Terminal Sayısı

6

Trimadjustable Output

NO

Ambalaj

Tube

Applications

ITE (Commercial)
