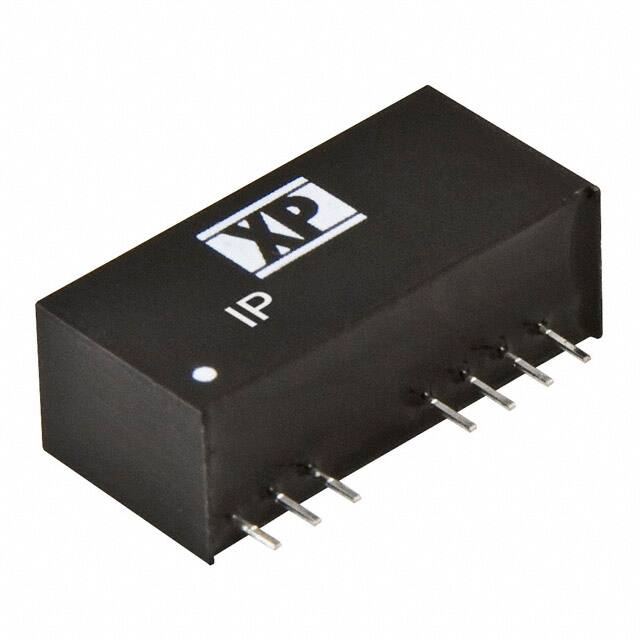

IP4815SA

Teknik Özellikler

Efficiency

81%

Current Output1

200mA

Voltage Isolation

1.6kV

Çalışma Sıcaklığı

-40°C~70°C

Seri

IP (3W)

Applications

ITE (Commercial)

Boyut / Ölçü

0.86Lx0.36W x 0.44 H 21.9mmx9.2mmx11.1mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Output Current

200mA

Ambalaj

Tube

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole

RoHS Durumu

ROHS3 Compliant

Reach Svhc

Unknown

Depth

21.85mm

Min Input Voltage Dc

18V

Max Input Voltage Dc

75V

Voltage Input Max

75V

Özellikler

Remote On/Off, SCP

Number Of Outputs

1

Power Rating

3W

Control Features

Enable, Active Low

Max Power Dissipation

3W

Operating Supply Voltage

48V

Montaj

PCB, Through Hole

Yükseklik

11.1mm

Max Output Power

3W

Output Current

200mA

Output Power

3W

Output Voltage

15V

Tip

Isolated Module

Yayın Yılı

2007

Parça Durumu

Active

Kılıf / Paket

8-SIP Module, 7 Leads

Fabrika Tedarik Süresi

10 Weeks

Nominal Output Voltage

15V
