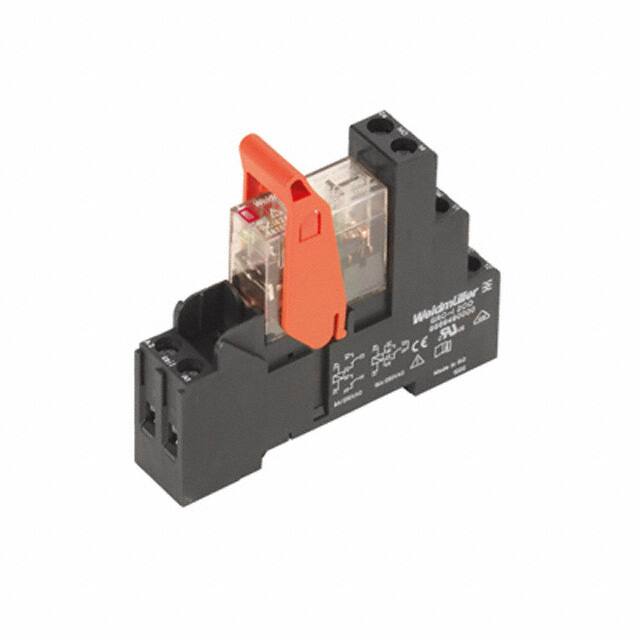

8897100000

Teknik Özellikler

Relay Type

General Purpose

Number Of Contacts

2

Fabrika Tedarik Süresi

6 Weeks

Switching Voltage

250VAC -Max

Çalışma Sıcaklığı

-40°C~70°C

Power Rating

800mW

Akım Değeri

7mA

Seri

RCI KIT

Kontak Formu

DPDT (2 Form C)

Özellikler

Lighted Indicator, Socket Included

Genişlik

15.5mm

Ambalaj

Bulk

Flammability Rating

UL94 V-0

Nominal Gerilim

240V

Coil Voltage Ac

115V

ECCN Kodu

EAR99

Contact Materials

Silver Nickel (AgNi)

Coil Voltage

115VAC

Depth

70mm

Montaj Tipi

DIN Rail

Parça Durumu

Active

Coil Power

750mW

Terminal

Screw

Coil Type

Non Latching

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Stili

Screw Terminal

Coilresistance

8.1kOhm

Contactoutput Supply Type

AC

Yükseklik

77mm

Additional Feature

COIL OPERATING VOLTAGE (AC): 86.3 V, COIL RELEASE VOLTAGE (AC): 17.3 V

Must Operate Voltage

86.3VAC

Physical Dimension

70mm X 15.5mm X 77mm

RoHS Durumu

RoHS Compliant

Must Release Voltage

17.3VAC

Release Time

2ms

Contact Rating Current

8A

Operate Time

7ms

Throw Configuration

DPDT

Onay Kuruluşu

CE, EN

Yayın Yılı

2008
