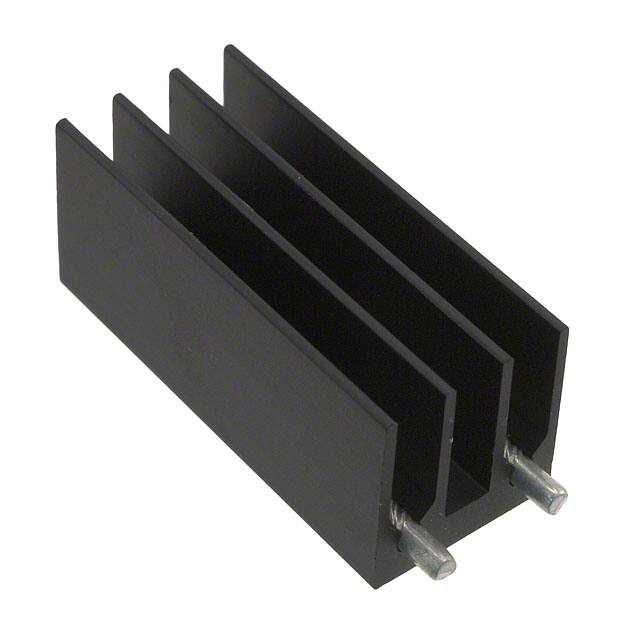

634-15ABP

Teknik Özellikler

Construction

FIN

Thermal Resistance Forced Air Flow

2.00°C/W @ 300 LFM

Uzunluk

1.500 38.10mm

Attachment Method

Bolt On and PC Pin

RoHS Durumu

Non-RoHS Compliant

Parça Durumu

Obsolete

Genişlik

0.640 16.26mm

Nem Hassasiyeti (MSL)

Not Applicable

Montaj

Bolt, PC Pin, Solder

Ambalaj

Bulk

Fin Orientation

LONGITUDINAL

Reach Svhc

Unknown

Yükseklik

38.1mm

Renk

Black

Kurşunsuz

Contains Lead

Weight

11.21g

Height Off Base Height Of Fin

0.640 16.26mm

Tip

Board Level, Vertical

Power Dissipation Temperature Rise

3.0W @ 50°C

Seri

634

Material Finish

Black Anodized

Kılıf / Paket

TO-220

Shape

Rectangular, Fins

Material

Aluminum

Thermal Resistance Natural

50.00°C/W

Yayın Yılı

2001

Package Cooled

TO-220, TO-218
