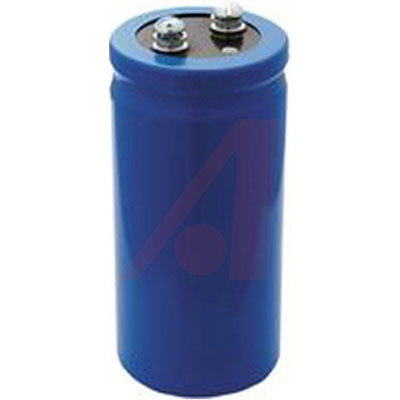

36DY104F025BF2A

Teknik Özellikler

Lead Pitch

22.2mm

Applications

General Purpose

Reach Svhc

Unknown

Weight

407.999987g

Yayın Yılı

2009

Kurşunsuz Kodu

yes

Ambalaj

Bulk

Tolerans

-10% +50%

Terminal Shape

BINDING POST

Lead Spacing

0.875 22.22mm

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

24 Weeks

Ripple Current High Frequency

25.08A @ 1kHz

Lifetime Temp

2000 Hrs @ 85°C

Kapasitans

100000μF

Montaj

Chassis Mount

Ripple Current

22.8A

Terminal

Screw

Montaj Tipi

Chassis Mount

Boyut / Ölçü

2.079Dia 52.80mm

Voltage Rated Dc

25V

Kılıf / Paket

Radial, Can - Screw Terminals

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~85°C

Maks. Oturma Yüksekliği

5.752 146.10mm

Seri

36DY

Polarization

Polar

Terminal Sayısı

2

Çap

51mm

Leakage Current

6.324555mA

ECCN Kodu

EAR99

REACH Uyumluluk Kodu

not_compliant

Esr Equivalent Series Resistance

7.2mOhm @ 120Hz

Ripple Current Low Frequency

22.8A @ 120Hz

Dielectric Material

Aluminium

Life Hours

2000 hours

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Yükseklik

143mm
