SQ2315ES-T1_GE3

Teknik Özellikler

Pin Sayısı

3

Drain To Source Resistance

42 mΩ

Turn Off Delay Time

28 ns

Number Of Elements

1

Schedule B

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

RoHS

Compliant

Montaj

Surface Mount

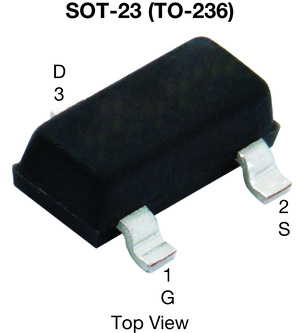

Casepackage

TO-236

Fall Time

13 ns

Radyasyon Dayanımı

No

Max Power Dissipation

2 W

Min. Çalışma Sıcaklığı

-55 °C

Turn On Delay Time

17 ns

Max Junction Temperature Tj

175 °C

Threshold Voltage

-450 mV

Reach Svhc

Unknown

Gate To Source Voltage Vgs

8 V

Number Of Channels

1

Yükseklik

1.12 mm

Maks. Çalışma Sıcaklığı

175 °C

Continuous Drain Current Id

-5 A

Power Dissipation

2 W

Drain To Source Breakdown Voltage

-12 V

Drain To Source Voltage Vdss

-12 V

Rise Time

19 ns
