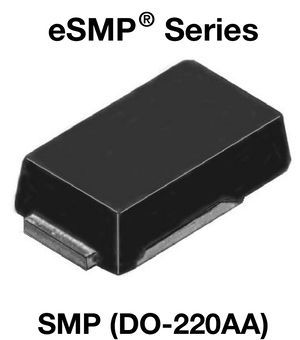

SMP16A-M3/84A

Teknik Özellikler

Maks. Çalışma Sıcaklığı

150 °C

Radyasyon Dayanımı

No

Test Current

1 mA

Leakage Current

1 µA

Uzunluk

3.61 mm

Breakdown Voltage V

17.8 V

Pin Sayısı

2

Reverse Standoff Voltage

16 V

Montaj

Surface Mount

Max Breakdown Voltage

19.7 V

Composition

Zener

Max Reverse Leakage Current

1 µA

Min Breakdown Voltage

17.8 V

Genişlik

2.18 mm

Number Of Elements

1

Schedule B

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|8541100080|85

Power Line Protection

No

Min. Çalışma Sıcaklığı

-55 °C

Working Voltage

16 V

Peak Pulse Current

15.4 A

Clamping Voltage

26 V

Reverse Breakdown Voltage

17.8 V

Number Of Unidirectional Channels

1

Polarity

Unidirectional

Reach Svhc

Unknown

Max Surge Current

15.4 A

Direction

Unidirectional

Casepackage

SMD/SMT

Element Configuration

Single

RoHS

Compliant

Peak Pulse Power

400 W

Yükseklik

1.15 mm
