SMCJ64CA-E3/57T

Teknik Özellikler

Peak Pulse Current

14.6 A

Clamping Voltage

103 V

Reverse Breakdown Voltage

71.1 V

Number Of Channels

1

Power Dissipation

1.5 kW

Min. Çalışma Sıcaklığı

-55 °C

Schedule B

8541100080

Operating Supply Voltage

64 V

Number Of Elements

1

Min Breakdown Voltage

71.1 V

Genişlik

6.22 mm

Direction

Bidirectional

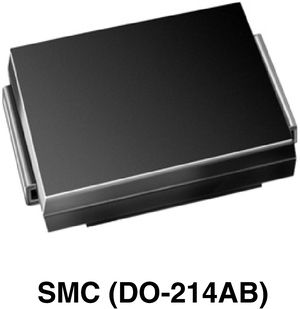

Casepackage

SMC

Peak Pulse Power

1.5 kW

Yükseklik

2.62 mm

Element Configuration

Single

RoHS

Compliant

Max Surge Current

14.6 A

Kurşunsuz

Lead Free

Terminal

SMD/SMT

Polarity

Bidirectional

Breakdown Voltage V

71.1 V

Pin Sayısı

2

Ambalaj

Tape & Reel

Leakage Current

1 µA

Uzunluk

8.13 mm

Test Current

1 mA

Maks. Çalışma Sıcaklığı

150 °C

Radyasyon Dayanımı

No

Max Breakdown Voltage

78.6 V

Max Reverse Leakage Current

1 µA

Max Power Dissipation

1.5 kW

Montaj

Surface Mount

Reverse Standoff Voltage

64 V

Contact Plating

Tin
