SMCJ6.0CA-E3/57T

Teknik Özellikler

Reverse Standoff Voltage

6 V

Max Breakdown Voltage

7.37 V

Max Reverse Leakage Current

1 µA

Max Power Dissipation

1.5 kW

Montaj

Surface Mount

Leakage Current

1 µA

Uzunluk

8.13 mm

Test Current

1 mA

Radyasyon Dayanımı

No

Maks. Çalışma Sıcaklığı

150 °C

Breakdown Voltage V

6.67 V

Pin Sayısı

2

Ambalaj

Cut Tape

Reach Svhc

Unknown

Polarity

Bidirectional

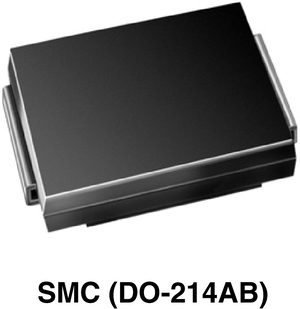

Casepackage

SMC

Direction

Bidirectional

Yükseklik

2.62 mm

Peak Pulse Power

1.5 kW

RoHS

Compliant

Element Configuration

Single

Max Surge Current

15.5 A

Terminal

SMD/SMT

Kurşunsuz

Lead Free

Number Of Elements

1

Operating Supply Voltage

6 V

Min Breakdown Voltage

6.67 V

Genişlik

6.22 mm

Reverse Breakdown Voltage

6.67 V

Clamping Voltage

10.3 V

Peak Pulse Current

15.5 A

Number Of Channels

1

Power Dissipation

1.5 kW

Min. Çalışma Sıcaklığı

-55 °C

Schedule B

8541100080
