SMCJ43CA-E3/57T

Teknik Özellikler

Maks. Çalışma Sıcaklığı

150 °C

Radyasyon Dayanımı

No

Test Current

1 mA

Leakage Current

1 µA

Uzunluk

7.11 mm

Ambalaj

Cut Tape

Breakdown Voltage V

47.8 V

Pin Sayısı

2

Reverse Standoff Voltage

43 V

Montaj

Surface Mount

Akım

216 A

Max Power Dissipation

1.5 kW

Max Breakdown Voltage

52.8 V

Max Reverse Leakage Current

1 µA

Min Breakdown Voltage

47.8 V

Genişlik

6.22 mm

Operating Supply Voltage

43 V

Number Of Elements

1

Schedule B

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080

Min. Çalışma Sıcaklığı

-55 °C

Peak Pulse Current

21.6 A

Clamping Voltage

69.4 V

Reverse Breakdown Voltage

47.8 V

Power Dissipation

1.5 kW

Number Of Channels

1

Polarity

Bidirectional

Reach Svhc

Unknown

Max Surge Current

21.6 A

Kurşunsuz

Lead Free

Terminal

SMD/SMT

Direction

Bidirectional

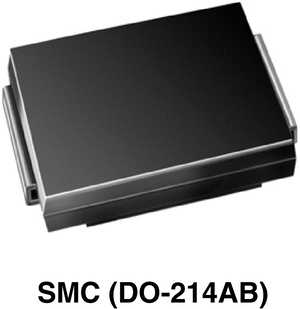

Casepackage

SMC

Gerilim

43 V

Element Configuration

Single

RoHS

Compliant

Peak Pulse Power

1.5 kW

Yükseklik

2.42 mm
