SMCJ28A-E3/57T

Teknik Özellikler

Max Power Dissipation

6.5 W

Min Breakdown Voltage

31.1 V

Genişlik

6.22 mm

Gerilim

28 V

Leakage Current

1 µA

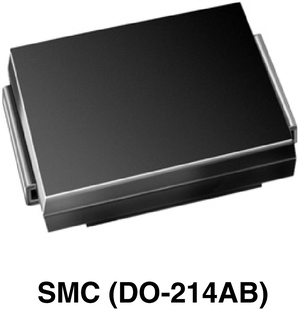

Casepackage

SMC

Terminal

SMD/SMT

Akım

32 A

Max Breakdown Voltage

34.4 V

Montaj

Surface Mount

Pin Sayısı

2

Ambalaj

Cut Tape

Number Of Elements

1

Clamping Voltage

45.4 V

Test Current

1 mA

Reach Svhc

Unknown

Kurşunsuz

Lead Free

Breakdown Voltage V

31.1 V

Polarity

Unidirectional

Element Configuration

Single

Yükseklik

2.62 mm

Uzunluk

8.13 mm

Direction

Unidirectional

Reverse Breakdown Voltage

31.1 V

Reverse Standoff Voltage

28 V

Maks. Çalışma Sıcaklığı

150 °C

RoHS

Compliant

Peak Pulse Power

1.5 kW

Number Of Channels

1

Max Reverse Leakage Current

1 µA

Peak Pulse Current

33 A

Operating Supply Voltage

28 V

Schedule B

8541100080

Min. Çalışma Sıcaklığı

-55 °C

Radyasyon Dayanımı

No

Max Surge Current

33 A
