SMCJ110CA-E3/57T

Teknik Özellikler

Leakage Current

1 µA

Min Breakdown Voltage

122 V

Max Power Dissipation

1.5 kW

Genişlik

6.22 mm

Number Of Elements

1

Test Current

1 mA

Clamping Voltage

177 V

Max Breakdown Voltage

149 V

Montaj

Surface Mount

Pin Sayısı

2

Terminal

SMD/SMT

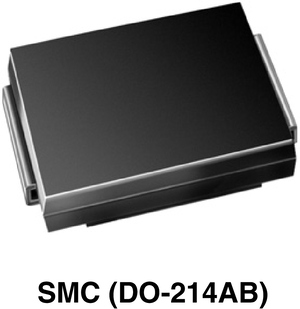

Casepackage

SMC

Power Dissipation

1.5 kW

Direction

Bidirectional

Reverse Standoff Voltage

110 V

Maks. Çalışma Sıcaklığı

150 °C

Reverse Breakdown Voltage

122 V

Element Configuration

Single

Uzunluk

7.11 mm

Yükseklik

2.42 mm

Breakdown Voltage V

122 V

Kurşunsuz

Lead Free

Polarity

Bidirectional

Contact Plating

Tin

Max Surge Current

8.5 A

Radyasyon Dayanımı

No

Min. Çalışma Sıcaklığı

-55 °C

Max Reverse Leakage Current

1 µA

Schedule B

8541100080

Operating Supply Voltage

110 V

Peak Pulse Current

8.5 A

RoHS

Compliant

Number Of Channels

1

Peak Pulse Power

1.5 kW
