SMBJ9.0CA-E3/52

Teknik Özellikler

Reach Svhc

Unknown

Element Configuration

Single

Yükseklik

2.24 mm

Peak Pulse Current

4.1 A

Uzunluk

4.57 mm

Peak Pulse Power

600 W

Maks. Çalışma Sıcaklığı

150 °C

Max Reverse Leakage Current

1 µA

Min Breakdown Voltage

10 V

Polarity

Bidirectional

Montaj

Surface Mount

Breakdown Voltage V

10 V

Max Breakdown Voltage

11.1 V

Number Of Elements

1

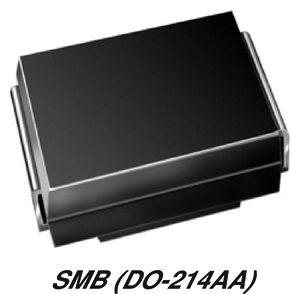

Casepackage

SMB

Direction

Bidirectional

Max Surge Current

3.3 A

Test Current

1 mA

Min. Çalışma Sıcaklığı

-55 °C

Power Dissipation

600 W

Operating Supply Voltage

9 V

Pin Sayısı

2

Radyasyon Dayanımı

No

Terminal

SMD/SMT

Clamping Voltage

15.4 V

Reverse Standoff Voltage

9 V

Number Of Channels

1

Genişlik

3.94 mm

Max Power Dissipation

600 W

Reverse Breakdown Voltage

10 V

Kurşunsuz

Lead Free

Leakage Current

1 µA

RoHS

Compliant
