SMBJ9.0A-E3/52

Teknik Özellikler

Kurşunsuz

Lead Free

Leakage Current

1 µA

RoHS

Compliant

Genişlik

3.94 mm

Number Of Channels

1

Reverse Breakdown Voltage

10 V

Max Power Dissipation

600 W

Operating Supply Voltage

9 V

Pin Sayısı

2

Terminal

SMD/SMT

Radyasyon Dayanımı

No

Clamping Voltage

15.4 V

Reverse Standoff Voltage

9 V

Test Current

1 mA

Min. Çalışma Sıcaklığı

-55 °C

Power Dissipation

600 W

Max Surge Current

3.3 A

Akım

39 A

Polarity

Unidirectional

Montaj

Surface Mount

Number Of Elements

1

Breakdown Voltage V

10 V

Max Breakdown Voltage

11.1 V

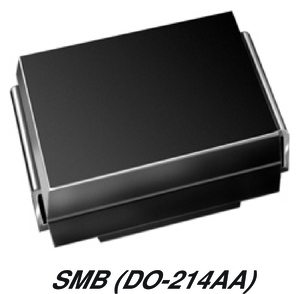

Casepackage

SMB

Direction

Unidirectional

Contact Plating

Tin

Uzunluk

4.57 mm

Peak Pulse Power

600 W

Schedule B

8541100080

Esd Protection

No

Maks. Çalışma Sıcaklığı

150 °C

Ambalaj

Tape & Reel

Min Breakdown Voltage

10 V

Gerilim

9 V

Max Reverse Leakage Current

1 µA

Peak Pulse Current

4.1 A

Yükseklik

2.24 mm

Element Configuration

Single
