SMBJ8.5CA-E3/52

Teknik Özellikler

Peak Pulse Current

4.4 A

Yükseklik

2.24 mm

Element Configuration

Single

Maks. Çalışma Sıcaklığı

150 °C

Min Breakdown Voltage

9.44 V

Max Reverse Leakage Current

1 µA

Uzunluk

4.57 mm

Peak Pulse Power

600 W

Number Of Elements

1

Breakdown Voltage V

9.44 V

Max Breakdown Voltage

10.4 V

Direction

Bidirectional

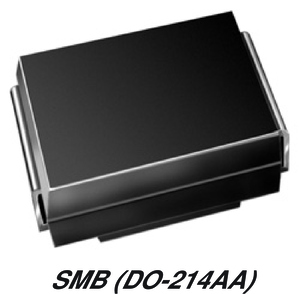

Casepackage

SMB

Polarity

Bidirectional

Montaj

Surface Mount

Max Surge Current

3.3 A

Power Dissipation

600 W

Test Current

1 mA

Min. Çalışma Sıcaklığı

-55 °C

Terminal

SMD/SMT

Radyasyon Dayanımı

No

Reverse Standoff Voltage

8.5 V

Clamping Voltage

14.4 V

Operating Supply Voltage

8.5 V

Pin Sayısı

2

Reverse Breakdown Voltage

9.44 V

Max Power Dissipation

600 W

Genişlik

3.94 mm

Number Of Channels

1

Leakage Current

1 µA

RoHS

Compliant

Kurşunsuz

Lead Free
