SMBJ8.5A-E3/52

Teknik Özellikler

Leakage Current

1 µA

RoHS

Compliant

Kurşunsuz

Lead Free

Max Power Dissipation

600 W

Reverse Breakdown Voltage

9.44 V

Number Of Channels

1

Genişlik

3.94 mm

Clamping Voltage

14.4 V

Reverse Standoff Voltage

8.5 V

Radyasyon Dayanımı

No

Terminal

SMD/SMT

Pin Sayısı

2

Operating Supply Voltage

8.5 V

Power Dissipation

600 W

Min. Çalışma Sıcaklığı

-55 °C

Test Current

1 mA

Max Surge Current

3.3 A

Direction

Unidirectional

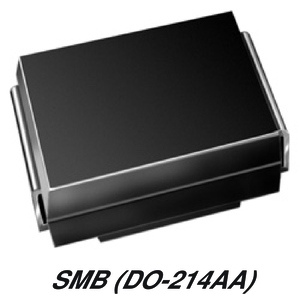

Casepackage

SMB

Max Breakdown Voltage

10.4 V

Breakdown Voltage V

9.44 V

Number Of Elements

1

Montaj

Surface Mount

Polarity

Unidirectional

Min Breakdown Voltage

9.44 V

Max Reverse Leakage Current

1 µA

Maks. Çalışma Sıcaklığı

150 °C

Schedule B

8541100080

Esd Protection

No

Peak Pulse Power

600 W

Contact Plating

Tin

Uzunluk

4.57 mm

Element Configuration

Single

Yükseklik

2.24 mm

Peak Pulse Current

4.4 A
