SMBJ8.0CA-E3/52

Teknik Özellikler

Peak Pulse Current

44.1 A

Uzunluk

5.59 mm

Number Of Channels

1

Clamping Voltage

13.6 V

Max Breakdown Voltage

9.83 V

Reach Svhc

Unknown

Max Power Dissipation

600 W

Reverse Breakdown Voltage

8.89 V

Maks. Çalışma Sıcaklığı

150 °C

Number Of Elements

1

Max Reverse Leakage Current

100 µA

Min Breakdown Voltage

8.89 V

Pin Sayısı

2

Yükseklik

2.44 mm

Element Configuration

Single

Test Current

1 mA

Reverse Standoff Voltage

8 V

RoHS

Compliant

Schedule B

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080

Breakdown Voltage V

8.89 V

Leakage Current

100 µA

Operating Supply Voltage

8 V

Montaj

Surface Mount

Terminal

SMD/SMT

Ambalaj

Cut Tape

Genişlik

3.94 mm

Power Dissipation

600 W

Radyasyon Dayanımı

No

Peak Pulse Power

600 W

Direction

Bidirectional

Polarity

Bidirectional

Min. Çalışma Sıcaklığı

-55 °C

Max Surge Current

3.3 A

Kurşunsuz

Lead Free

Casepackage

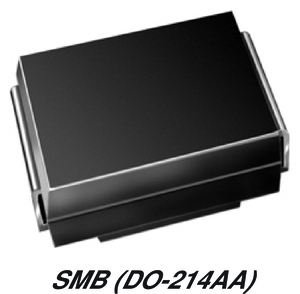

SMB
