SMBJ7.5CA-E3/52

Teknik Özellikler

Element Configuration

Single

Test Current

1 mA

Reverse Standoff Voltage

7.5 V

Pin Sayısı

2

Yükseklik

2.44 mm

Max Reverse Leakage Current

1 µA

Number Of Elements

1

Min Breakdown Voltage

8.33 V

Max Breakdown Voltage

9.21 V

Reverse Breakdown Voltage

8.33 V

Max Power Dissipation

600 W

Reach Svhc

Unknown

Maks. Çalışma Sıcaklığı

150 °C

Clamping Voltage

12.9 V

Number Of Channels

1

Peak Pulse Current

5 A

Uzunluk

5.59 mm

Min. Çalışma Sıcaklığı

-55 °C

Polarity

Bidirectional

Max Surge Current

3.3 A

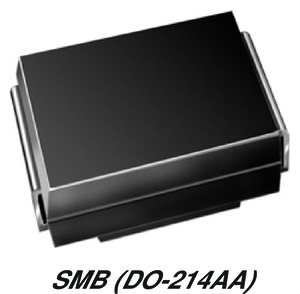

Casepackage

SMB

Kurşunsuz

Lead Free

Peak Pulse Power

600 W

Direction

Bidirectional

Radyasyon Dayanımı

No

Genişlik

3.94 mm

Power Dissipation

600 W

Terminal

SMD/SMT

Ambalaj

Cut Tape

Breakdown Voltage V

8.33 V

Schedule B

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080

Leakage Current

1 µA

Operating Supply Voltage

7.5 V

Montaj

Surface Mount

RoHS

Compliant
