SMBJ64CA-E3/52

Teknik Özellikler

Radyasyon Dayanımı

No

Peak Pulse Power

600 W

Direction

Bidirectional

Max Surge Current

5.8 A

Min. Çalışma Sıcaklığı

-55 °C

Polarity

Bidirectional

Kurşunsuz

Lead Free

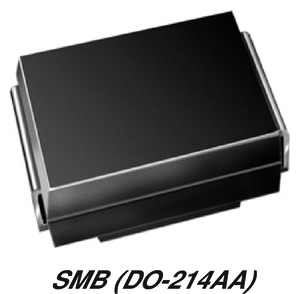

Casepackage

SMB

RoHS

Compliant

Breakdown Voltage V

71.1 V

Schedule B

8541100080

Montaj

Surface Mount

Operating Supply Voltage

64 V

Leakage Current

1 µA

Terminal

SMD/SMT

Genişlik

3.94 mm

Power Dissipation

600 W

Max Breakdown Voltage

86.9 V

Maks. Çalışma Sıcaklığı

150 °C

Max Power Dissipation

600 W

Reverse Breakdown Voltage

71.1 V

Max Reverse Leakage Current

1 µA

Number Of Elements

1

Min Breakdown Voltage

71.1 V

Pin Sayısı

2

Yükseklik

2.44 mm

Test Current

1 mA

Element Configuration

Single

Reverse Standoff Voltage

64 V

Peak Pulse Current

5.8 A

Uzunluk

5.59 mm

Number Of Channels

1

Clamping Voltage

103 V
