SMBJ28CA-E3/52

Teknik Özellikler

Clamping Voltage

45.4 V

Pin Sayısı

2

Number Of Channels

1

Yükseklik

2.24 mm

Schedule B

8541100080

Terminal

SMD/SMT

Ambalaj

Cut Tape

Genişlik

3.94 mm

Polarity

Bidirectional

Max Surge Current

13.2 A

Radyasyon Dayanımı

No

Reverse Standoff Voltage

28 V

Breakdown Voltage V

31.1 V

Akım

68 A

Montaj

Surface Mount

Esd Protection

Yes

Min Breakdown Voltage

31.1 V

Max Power Dissipation

600 W

Power Dissipation

600 W

Leakage Current

1 µA

Peak Pulse Current

12 A

Operating Supply Voltage

28 V

Min. Çalışma Sıcaklığı

-55 °C

Direction

Bidirectional

RoHS

Compliant

Max Breakdown Voltage

34.4 V

Kurşunsuz

Lead Free

Max Reverse Leakage Current

1 µA

Uzunluk

4.57 mm

Gerilim

28 V

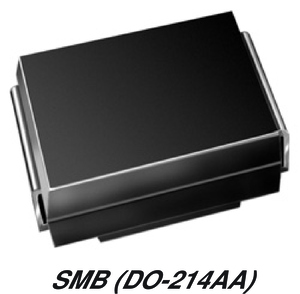

Casepackage

SMB

Reach Svhc

No SVHC

Element Configuration

Single

Number Of Elements

1

Peak Pulse Power

600 W

Maks. Çalışma Sıcaklığı

150 °C

Reverse Breakdown Voltage

31.1 V

Test Current

1 mA
