SMBJ22CA-E3/52

Teknik Özellikler

Peak Pulse Current

16.9 A

Leakage Current

1 µA

Power Dissipation

600 W

Max Power Dissipation

600 W

Min Breakdown Voltage

24.4 V

Breakdown Voltage V

24.4 V

Reverse Standoff Voltage

22 V

Montaj

Surface Mount

Esd Protection

Yes

Radyasyon Dayanımı

No

Max Surge Current

16.9 A

Polarity

Bidirectional

Number Of Channels

1

Yükseklik

2.24 mm

Schedule B

8541100080

Terminal

SMD/SMT

Genişlik

3.94 mm

Clamping Voltage

35.5 V

Pin Sayısı

2

Peak Pulse Power

600 W

Maks. Çalışma Sıcaklığı

150 °C

Test Current

1 mA

Reverse Breakdown Voltage

24.4 V

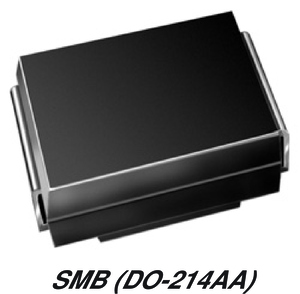

Casepackage

SMB

Number Of Elements

1

Element Configuration

Single

Max Reverse Leakage Current

1 µA

Uzunluk

4.57 mm

Kurşunsuz

Lead Free

Max Breakdown Voltage

26.9 V

RoHS

Compliant

Operating Supply Voltage

22 V

Min. Çalışma Sıcaklığı

-55 °C

Direction

Bidirectional
