SMBJ18A-E3/52

Teknik Özellikler

Power Dissipation

600 W

Leakage Current

1 µA

Peak Pulse Current

20.5 A

Max Power Dissipation

600 W

Contact Plating

Tin

Min Breakdown Voltage

20 V

Breakdown Voltage V

20 V

Reverse Standoff Voltage

18 V

Esd Protection

No

Montaj

Surface Mount

Radyasyon Dayanımı

No

Max Surge Current

20.5 A

Polarity

Unidirectional

Terminal

SMD/SMT

Number Of Channels

1

Yükseklik

2.44 mm

Schedule B

8541100080

Ambalaj

Cut Tape

Pin Sayısı

2

Clamping Voltage

29.2 V

Peak Pulse Power

600 W

Reverse Breakdown Voltage

20 V

Test Current

1 mA

Maks. Çalışma Sıcaklığı

150 °C

Max Junction Temperature Tj

150 °C

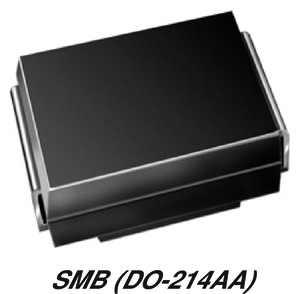

Casepackage

SMB

Reach Svhc

No SVHC

Element Configuration

Single

Number Of Elements

1

Max Reverse Leakage Current

1 µA

Uzunluk

5.59 mm

Kurşunsuz

Lead Free

Max Breakdown Voltage

22.1 V

RoHS

Compliant

Operating Supply Voltage

18 V

Direction

Unidirectional

Min. Çalışma Sıcaklığı

-55 °C
