SMBJ160A-E3/52

Teknik Özellikler

Leakage Current

1 µA

Peak Pulse Current

2.3 A

Max Power Dissipation

600 W

Min Breakdown Voltage

178 V

Reverse Standoff Voltage

160 V

Breakdown Voltage V

178 V

Montaj

Surface Mount

Max Surge Current

2.3 A

Radyasyon Dayanımı

No

Polarity

Unidirectional

Yükseklik

2.44 mm

Number Of Channels

1

Terminal

SMD/SMT

Genişlik

3.94 mm

Clamping Voltage

259 V

Pin Sayısı

2

Peak Pulse Power

600 W

Maks. Çalışma Sıcaklığı

150 °C

Test Current

1 mA

Reverse Breakdown Voltage

178 V

Casepackage

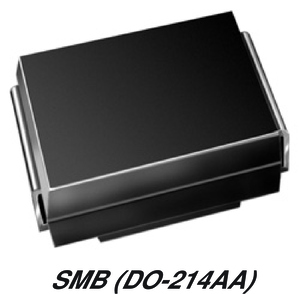

SMB

Number Of Elements

1

Element Configuration

Single

Max Reverse Leakage Current

1 µA

Uzunluk

5.59 mm

Kurşunsuz

Lead Free

RoHS

Compliant

Operating Supply Voltage

160 V

Min. Çalışma Sıcaklığı

-55 °C

Direction

Unidirectional
