SMBJ130CA-E3/52

Teknik Özellikler

Kurşunsuz

Lead Free

Max Reverse Leakage Current

1 µA

Uzunluk

5.59 mm

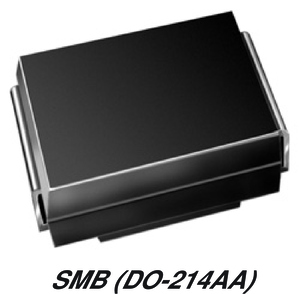

Casepackage

SMB

Number Of Elements

1

Element Configuration

Single

Peak Pulse Power

600 W

Max Junction Temperature Tj

150 °C

Maks. Çalışma Sıcaklığı

150 °C

Test Current

1 mA

Reverse Breakdown Voltage

144 V

Operating Supply Voltage

130 V

Min. Çalışma Sıcaklığı

-55 °C

Direction

Bidirectional

RoHS

Compliant

Max Breakdown Voltage

159 V

Breakdown Voltage V

144 V

Reverse Standoff Voltage

130 V

Montaj

Surface Mount

Min Breakdown Voltage

144 V

Max Power Dissipation

600 W

Peak Pulse Current

2.9 A

Leakage Current

1 µA

Power Dissipation

600 W

Clamping Voltage

209 V

Pin Sayısı

2

Number Of Channels

1

Yükseklik

2.44 mm

Schedule B

8541100080

Terminal

SMD/SMT

Genişlik

3.94 mm

Polarity

Bidirectional

Radyasyon Dayanımı

No

Max Surge Current

2.9 A
