SMBJ120A-E3/52

Teknik Özellikler

Polarity

Unidirectional

Radyasyon Dayanımı

No

Direction

Unidirectional

Maks. Çalışma Sıcaklığı

150 °C

Yükseklik

2.44 mm

Max Power Dissipation

600 W

Number Of Elements

1

Breakdown Voltage V

133 V

Max Reverse Leakage Current

1 µA

Min Breakdown Voltage

133 V

Peak Pulse Power

600 W

Max Surge Current

3.1 A

Uzunluk

5.59 mm

Montaj

Surface Mount

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel

Genişlik

3.94 mm

Clamping Voltage

193 V

RoHS

Compliant

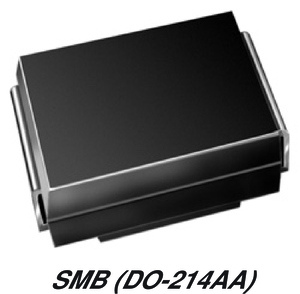

Casepackage

SMB

Terminal

SMD/SMT

Schedule B

8541100080

Pin Sayısı

2

Min. Çalışma Sıcaklığı

-55 °C

Element Configuration

Single

Peak Pulse Current

3.1 A

Leakage Current

1 µA

Number Of Channels

1

Operating Supply Voltage

120 V

Reverse Breakdown Voltage

133 V

Reverse Standoff Voltage

120 V

Test Current

1 mA
