SMBJ110CA-E3/52

Teknik Özellikler

Yükseklik

2.44 mm

Polarity

Bidirectional

Radyasyon Dayanımı

No

Direction

Bidirectional

Maks. Çalışma Sıcaklığı

150 °C

Max Reverse Leakage Current

1 µA

Reach Svhc

Unknown

Max Power Dissipation

600 W

Number Of Elements

1

Breakdown Voltage V

122 V

Max Surge Current

3.4 A

Uzunluk

5.59 mm

Montaj

Surface Mount

Min Breakdown Voltage

122 V

Peak Pulse Power

600 W

Genişlik

3.94 mm

Kurşunsuz

Lead Free

Ambalaj

Cut Tape

Clamping Voltage

177 V

Pin Sayısı

2

RoHS

Compliant

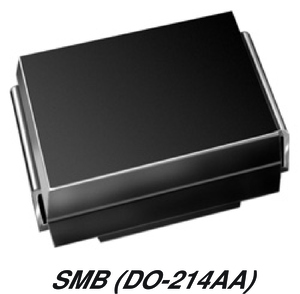

Casepackage

SMB

Terminal

SMD/SMT

Power Dissipation

600 W

Min. Çalışma Sıcaklığı

-55 °C

Max Breakdown Voltage

135 V

Peak Pulse Current

3.4 A

Leakage Current

1 µA

Element Configuration

Single

Reverse Breakdown Voltage

122 V

Test Current

1 mA

Reverse Standoff Voltage

110 V

Number Of Channels

1

Operating Supply Voltage

110 V
