SMAJ7.0A-E3/61

Teknik Özellikler

Schedule B

8541100080

Yükseklik

2.29 mm

Uzunluk

5.28 mm

Min. Çalışma Sıcaklığı

-55 °C

Leakage Current

1 µA

Kurşunsuz

Lead Free

RoHS

Compliant

Composition

Zener

Number Of Channels

1

Operating Supply Voltage

7 V

Contact Plating

Tin

Element Configuration

Single

Max Surge Current

3.5 A

Maks. Çalışma Sıcaklığı

150 °C

Breakdown Voltage V

8.6 V

Terminal

SMD/SMT

Test Current

1 mA

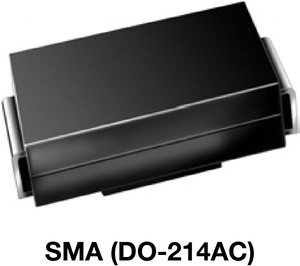

Casepackage

SMA

Power Line Protection

No

Peak Pulse Current

3.5 A

Genişlik

2.79 mm

Pin Sayısı

2

Max Reverse Leakage Current

1 µA

Radyasyon Dayanımı

No

Number Of Unidirectional Channels

1

Reverse Breakdown Voltage

7.78 V

Polarity

Unidirectional

Direction

Unidirectional

Reverse Standoff Voltage

7 V

Number Of Elements

1

Min Breakdown Voltage

7.78 V

Max Forward Surge Current Ifsm

40 A

Ambalaj

Tape and Reel

Clamping Voltage

12 V

Power Rating

400 W

Peak Pulse Power

400 W
