SMAJ6.0A-E3/61

Teknik Özellikler

Contact Plating

Tin

Number Of Channels

1

Operating Supply Voltage

6 V

Element Configuration

Single

Max Breakdown Voltage

7.37 V

Max Surge Current

4.1 A

Maks. Çalışma Sıcaklığı

150 °C

Power Dissipation

400 W

Schedule B

8541100080

Yükseklik

2.087 mm

Min. Çalışma Sıcaklığı

-55 °C

Leakage Current

1 µA

Uzunluk

4.5 mm

Kurşunsuz

Lead Free

Reach Svhc

Unknown

RoHS

Compliant

Gerilim

60 V

Reverse Breakdown Voltage

6.67 V

Polarity

Unidirectional

Min Breakdown Voltage

6.67 V

Number Of Elements

1

Reverse Standoff Voltage

6 V

Direction

Unidirectional

Clamping Voltage

10.3 V

Power Rating

400 W

Max Forward Surge Current Ifsm

40 A

Ambalaj

Tape and Reel

Peak Pulse Power

400 W

Breakdown Voltage V

6.67 V

Akım

41 A

Terminal

SMD/SMT

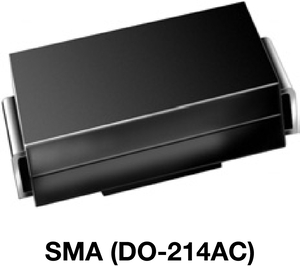

Casepackage

SMA

Test Current

1 mA

Peak Pulse Current

4.1 A

Pin Sayısı

2

Max Power Dissipation

400 W

Genişlik

2.79 mm

Radyasyon Dayanımı

No

Max Reverse Leakage Current

1 µA
