SMAJ40A-E3/61

Teknik Özellikler

Pin Sayısı

2

Clamping Voltage

64.5 V

Terminal

SMD/SMT

Yükseklik

2.286 mm

Number Of Channels

1

Genişlik

2.794 mm

Ambalaj

Tape and Reel

Polarity

Unidirectional

Power Rating

400 W

Max Surge Current

6.2 A

Radyasyon Dayanımı

No

Breakdown Voltage V

44.4 V

Reverse Standoff Voltage

40 V

Min Breakdown Voltage

44.4 V

Contact Plating

Tin

Working Voltage

3.5 V

Voltage Rating Dc

40 V

Max Power Dissipation

400 W

Leakage Current

1 µA

Peak Pulse Current

6.2 A

Power Dissipation

400 W

Operating Supply Voltage

40 V

Direction

Unidirectional

Min. Çalışma Sıcaklığı

-55 °C

RoHS

Compliant

Max Breakdown Voltage

49.1 V

Kurşunsuz

Lead Free

Max Reverse Leakage Current

1 µA

Max Forward Surge Current Ifsm

40 A

Uzunluk

4.4958 mm

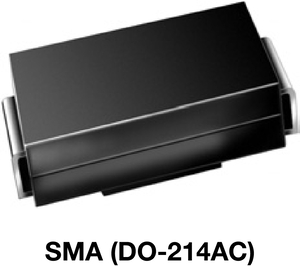

Casepackage

SMA

Reach Svhc

Unknown

Element Configuration

Single

Number Of Elements

1

Peak Pulse Power

400 W

Reverse Breakdown Voltage

44.4 V

Test Current

1 mA

Maks. Çalışma Sıcaklığı

150 °C
