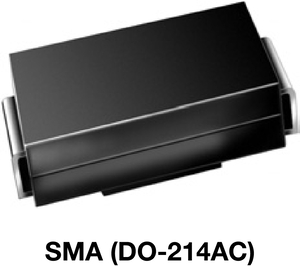

SMAJ16A-E3/61

Teknik Özellikler

Clamping Voltage

26 V

Pin Sayısı

2

Ambalaj

Tape and Reel

Genişlik

2.79 mm

Yükseklik

2.087 mm

Schedule B

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080

Number Of Channels

1

Terminal

SMD/SMT

Polarity

Unidirectional

Radyasyon Dayanımı

No

Max Surge Current

15.4 A

Power Rating

400 W

Breakdown Voltage V

17.8 V

Reverse Standoff Voltage

16 V

Min Breakdown Voltage

17.8 V

Max Power Dissipation

400 W

Voltage Rating Dc

16 V

Peak Pulse Current

15.4 A

Leakage Current

1 µA

Power Dissipation

400 W

Min. Çalışma Sıcaklığı

-55 °C

Direction

Unidirectional

Operating Supply Voltage

16 V

RoHS

Compliant

Max Breakdown Voltage

19.7 V

Kurşunsuz

Lead Free

Uzunluk

4.5 mm

Max Forward Surge Current Ifsm

40 A

Max Reverse Leakage Current

1 µA

Number Of Elements

1

Element Configuration

Single

Reach Svhc

Unknown

Casepackage

SMA

Maks. Çalışma Sıcaklığı

150 °C

Reverse Breakdown Voltage

17.8 V

Test Current

1 mA

Peak Pulse Power

400 W
