SI2342DS-T1-GE3

Teknik Özellikler

Input Capacitance

1.07 nF

Turn On Delay Time

6 ns

Continuous Drain Current Id

6 A

Min. Çalışma Sıcaklığı

-55 °C

Threshold Voltage

800 mV

Kurşunsuz

Lead Free

Drain To Source Breakdown Voltage

8 V

Yükseklik

1.12 mm

Pin Sayısı

3

Fall Time

25 ns

Contact Plating

Tin

Turn Off Delay Time

65 ns

Max Power Dissipation

2.5 W

Rds On Max

17 mΩ

Drain To Source Resistance

14 mΩ

Rise Time

14 ns

Power Dissipation

1.3 W

Number Of Channels

1

Schedule B

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

Maks. Çalışma Sıcaklığı

150 °C

Max Junction Temperature Tj

150 °C

Radyasyon Dayanımı

No

Montaj

Surface Mount

Drain To Source Voltage Vdss

8 V

Gate To Source Voltage Vgs

5 V

Reach Svhc

No SVHC

Casepackage

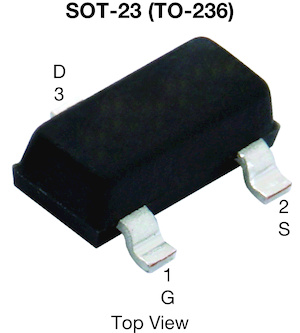

SOT-23

RoHS

Compliant

Ambalaj

Tape & Reel (TR)

Number Of Elements

1
