SI2301CDS-T1-GE3

Teknik Özellikler

Genişlik

1.4 mm

Gate To Source Voltage Vgs

8 V

Number Of Elements

1

Ambalaj

Cut Tape

RoHS

Compliant

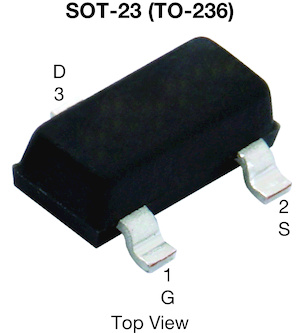

Casepackage

SOT-23

Reach Svhc

No SVHC

Max Junction Temperature Tj

150 °C

Maks. Çalışma Sıcaklığı

150 °C

Schedule B

8541210080, 8541210080|8541210080, 8541210080|8541210080|8541210080, 8541210080|8541210080|8541210080|8541210080

Number Of Channels

1

Power Dissipation

1.6 W

Rise Time

35 ns

Drain To Source Resistance

90 mΩ

Nominal Vgs

-400 mV

Drain To Source Voltage Vdss

-20 V

Montaj

Surface Mount

Radyasyon Dayanımı

No

Weight

1.437803 g

Pin Sayısı

3

Rds On Max

112 mΩ

Turn Off Delay Time

30 ns

Max Power Dissipation

860 mW

Contact Plating

Tin

Fall Time

35 ns

Input Capacitance

405 pF

Element Configuration

Single

Yükseklik

1.12 mm

Uzunluk

3.04 mm

Min. Çalışma Sıcaklığı

-55 °C

Threshold Voltage

-1 V

Kurşunsuz

Lead Free

Drain To Source Breakdown Voltage

-20 V

Turn On Delay Time

11 ns

Continuous Drain Current Id

-3.1 A

Direnç

112 mΩ
