P6SMB91A-E3/52

Teknik Özellikler

Reverse Standoff Voltage

7.78 V

Max Reverse Leakage Current

1 µA

Reverse Breakdown Voltage

8.65 V

Terminal

SMD/SMT

Breakdown Voltage V

8.65 V

Direction

Unidirectional

Max Power Dissipation

600 W

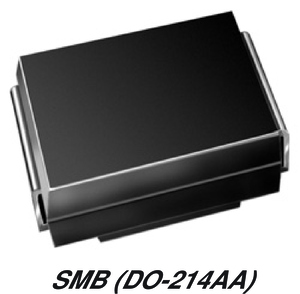

Casepackage

SMB

Leakage Current

1 µA

Max Surge Current

100 A

Number Of Channels

1

Number Of Elements

1

Maks. Çalışma Sıcaklığı

150 °C

Operating Supply Voltage

7.78 V

Element Configuration

Single

Peak Pulse Power

600 W

Peak Pulse Current

4.8 A

Schedule B

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080

Min Breakdown Voltage

8.65 V

Polarity

Unidirectional

Min. Çalışma Sıcaklığı

-65 °C

Clamping Voltage

13.4 V

Test Current

1 mA

Pin Sayısı

2

Montaj

Surface Mount

RoHS

Compliant
