P6SMB39CA-E3/52

Teknik Özellikler

Peak Pulse Current

11.1 A

Peak Pulse Power

600 W

Number Of Bidirectional Channels

1

Element Configuration

Single

Radyasyon Dayanımı

No

Operating Supply Voltage

33.3 V

Maks. Çalışma Sıcaklığı

150 °C

Number Of Elements

1

Composition

Zener

Number Of Channels

1

Ambalaj

Cut Tape

RoHS

Compliant

Test Current

1 mA

Montaj

Surface Mount

Pin Sayısı

2

Clamping Voltage

53.9 V

Min. Çalışma Sıcaklığı

-65 °C

Polarity

Bidirectional

Min Breakdown Voltage

37.1 V

Max Reverse Leakage Current

1 µA

Reverse Breakdown Voltage

37.1 V

Reverse Standoff Voltage

33.3 V

Power Line Protection

No

Max Surge Current

100 A

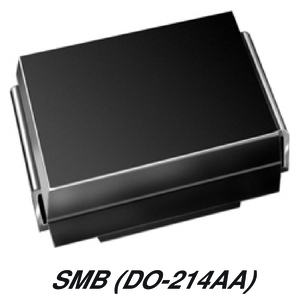

Casepackage

SMB

Leakage Current

1 µA

Direction

Bidirectional

Max Power Dissipation

600 W

Breakdown Voltage V

37.1 V
