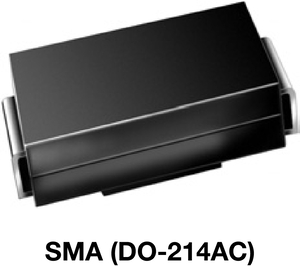

P4SMA36CA-E3/61

Teknik Özellikler

Clamping Voltage

49.9 V

Test Current

1 mA

Pin Sayısı

2

Montaj

Surface Mount

RoHS

Compliant

Min Breakdown Voltage

34.2 V

Polarity

Bidirectional

Min. Çalışma Sıcaklığı

-65 °C

Element Configuration

Single

Number Of Bidirectional Channels

1

Peak Pulse Current

8 A

Schedule B

8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080

Peak Pulse Power

400 W

Composition

Zener

Number Of Channels

1

Number Of Elements

1

Maks. Çalışma Sıcaklığı

150 °C

Operating Supply Voltage

30.8 V

Direction

Bidirectional

Casepackage

SMA

Leakage Current

1 µA

Max Surge Current

40 A

Terminal

SMD/SMT

Breakdown Voltage V

34.2 V

Reverse Standoff Voltage

30.8 V

Max Reverse Leakage Current

1 µA

Reverse Breakdown Voltage

34.2 V

Power Line Protection

No
