IRL630PBF

Teknik Özellikler

Fall Time

33 ns

Montaj

Through Hole

Direnç

400 mΩ

Recovery Time

350 ns

Turn On Delay Time

8 ns

Input Capacitance

1.1 nF

Power Dissipation

74 W

Kurşunsuz

Lead Free

Max Power Dissipation

74 W

Rise Time

57 ns

Yükseklik

9.01 mm

Pin Sayısı

3

Number Of Elements

1

Min. Çalışma Sıcaklığı

-55 °C

Threshold Voltage

2 V

Gate To Source Voltage Vgs

10 V

Genişlik

4.7 mm

RoHS

Compliant

Drain To Source Breakdown Voltage

200 V

Weight

6.000006 g

Turn Off Delay Time

38 ns

Uzunluk

10.41 mm

Nominal Vgs

2 V

Schedule B

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

Continuous Drain Current Id

9 A

Maks. Çalışma Sıcaklığı

150 °C

Reach Svhc

Unknown

Drain To Source Voltage Vdss

200 V

Number Of Channels

1

Radyasyon Dayanımı

No

Rds On Max

400 mΩ

Ambalaj

Bulk

Element Configuration

Single

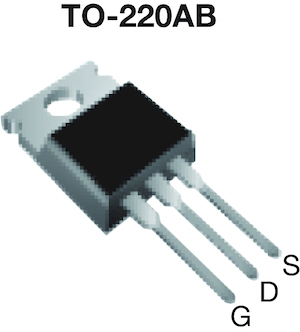

Casepackage

TO-220AB

Drain To Source Resistance

400 mΩ
