IRL510PBF

Teknik Özellikler

Akım Değeri

5.6 A

Montaj

Through Hole

Fall Time

18 ns

Turn On Delay Time

9.3 ns

Direnç

540 mΩ

Recovery Time

130 ns

Kurşunsuz

Lead Free

Rise Time

47 ns

Max Power Dissipation

43 W

Input Capacitance

250 pF

Power Dissipation

43 W

Min. Çalışma Sıcaklığı

-55 °C

Number Of Elements

1

Yükseklik

9.01 mm

Pin Sayısı

3

Weight

6.000006 g

Voltage Rating Dc

100 V

Drain To Source Breakdown Voltage

100 V

RoHS

Compliant

Gate To Source Voltage Vgs

10 V

Threshold Voltage

2 V

Genişlik

4.7 mm

Continuous Drain Current Id

5.6 A

Maks. Çalışma Sıcaklığı

175 °C

Reach Svhc

No SVHC

Nominal Vgs

2 V

Schedule B

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

Turn Off Delay Time

16 ns

Uzunluk

10.41 mm

Radyasyon Dayanımı

No

Drain To Source Voltage Vdss

100 V

Number Of Channels

1

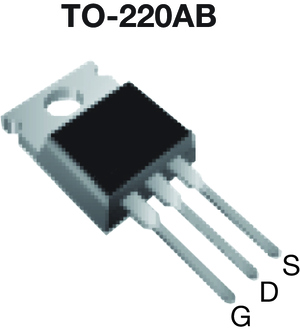

Casepackage

TO-220AB

Drain To Source Resistance

540 mΩ

Element Configuration

Single

Rds On Max

540 mΩ

Ambalaj

Bulk
