IRL510

Teknik Özellikler

Uzunluk

10.41 mm

Turn Off Delay Time

16 ns

Continuous Drain Current Id

5.6 A

Maks. Çalışma Sıcaklığı

175 °C

RoHS

Compliant

Genişlik

4.7 mm

Gate To Source Voltage Vgs

10 V

Weight

6.000006 g

Drain To Source Breakdown Voltage

100 V

Element Configuration

Single

Ambalaj

Bulk

Rds On Max

540 mΩ

Casepackage

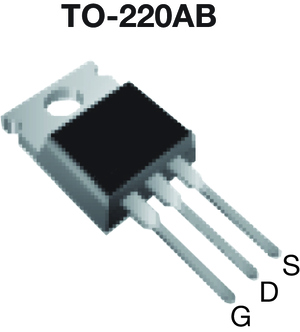

TO-220AB

Drain To Source Resistance

540 mΩ

Drain To Source Voltage Vdss

100 V

Number Of Channels

1

Turn On Delay Time

9.3 ns

Montaj

Through Hole

Fall Time

18 ns

Pin Sayısı

3

Yükseklik

9.01 mm

Min. Çalışma Sıcaklığı

-55 °C

Number Of Elements

1

Power Dissipation

43 W

Input Capacitance

250 pF

Max Power Dissipation

43 W

Rise Time

47 ns

Kurşunsuz

Contains Lead
