IRFRC20TRLPBF

Teknik Özellikler

RoHS

Compliant

Power Dissipation

2.5 W

Radyasyon Dayanımı

No

Drain To Source Resistance

4.4 Ω

Kurşunsuz

Lead Free

Max Power Dissipation

2.5 W

Schedule B

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

Uzunluk

6.73 mm

Weight

1.437803 g

Casepackage

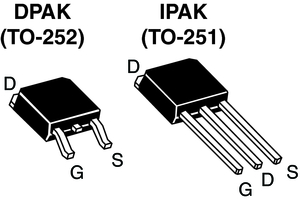

DPAK

Maks. Çalışma Sıcaklığı

150 °C

Genişlik

6.22 mm

Drain To Source Voltage Vdss

600 V

Drain To Source Breakdown Voltage

600 V

Ambalaj

Digi-Reel®

Fall Time

25 ns

Min. Çalışma Sıcaklığı

-55 °C

Input Capacitance

350 pF

Montaj

Surface Mount

Continuous Drain Current Id

2 A

Element Configuration

Single

Turn On Delay Time

10 ns

Yükseklik

2.39 mm

Direnç

4.4 Ω

Turn Off Delay Time

30 ns

Number Of Elements

1

Number Of Channels

1

Rds On Max

4.4 Ω

Rise Time

23 ns

Gate To Source Voltage Vgs

20 V

Pin Sayısı

3
