IRFR9024PBF

Teknik Özellikler

Schedule B

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

Max Power Dissipation

2.5 W

Kurşunsuz

Lead Free

Drain To Source Resistance

280 mΩ

Radyasyon Dayanımı

No

Max Junction Temperature Tj

150 °C

Power Dissipation

2.5 W

RoHS

Compliant

Reach Svhc

Unknown

Min. Çalışma Sıcaklığı

-55 °C

Fall Time

29 ns

Drain To Source Voltage Vdss

-60 V

Drain To Source Breakdown Voltage

-60 V

Akım Değeri

-8.8 A

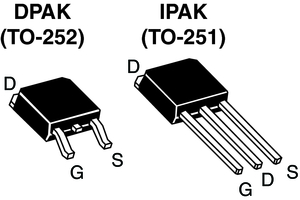

Casepackage

DPAK

Voltage Rating Dc

-60 V

Maks. Çalışma Sıcaklığı

150 °C

Weight

1.437803 g

Uzunluk

6.73 mm

Element Configuration

Single

Threshold Voltage

-4 V

Yükseklik

2.52 mm

Turn On Delay Time

13 ns

Montaj

Surface Mount

Continuous Drain Current Id

-8.8 A

Input Capacitance

570 pF

Recovery Time

200 ns

Pin Sayısı

3

Gate To Source Voltage Vgs

20 V

Rds On Max

280 mΩ

Number Of Channels

1

Number Of Elements

1

Rise Time

68 ns

Direnç

280 mΩ

Turn Off Delay Time

15 ns
