IRFR110PBF

Teknik Özellikler

Reach Svhc

Unknown

RoHS

Compliant

Radyasyon Dayanımı

No

Drain To Source Resistance

540 mΩ

Kurşunsuz

Lead Free

Max Power Dissipation

2.5 W

Schedule B

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

Uzunluk

6.73 mm

Weight

1.437803 g

Maks. Çalışma Sıcaklığı

150 °C

Housing Material

ABS

Voltage Rating Dc

100 V

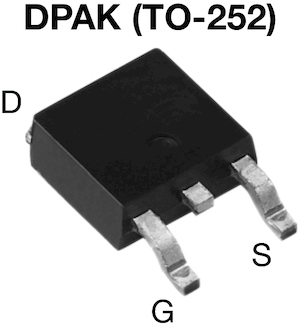

Casepackage

DPAK

Drain To Source Breakdown Voltage

100 V

Akım Değeri

4.7 A

Drain To Source Voltage Vdss

100 V

Fall Time

9.4 ns

Min. Çalışma Sıcaklığı

-55 °C

Input Capacitance

180 pF

Nominal Vgs

4 V

Continuous Drain Current Id

4.3 A

Montaj

Surface Mount

Turn On Delay Time

6.9 ns

Yükseklik

2.39 mm

Threshold Voltage

4 V

Element Configuration

Single

Turn Off Delay Time

15 ns

Direnç

540 mΩ

Rise Time

16 ns

Rds On Max

540 mΩ

Number Of Channels

1

Number Of Elements

1

Gate To Source Voltage Vgs

20 V

Recovery Time

200 ns

Pin Sayısı

3
