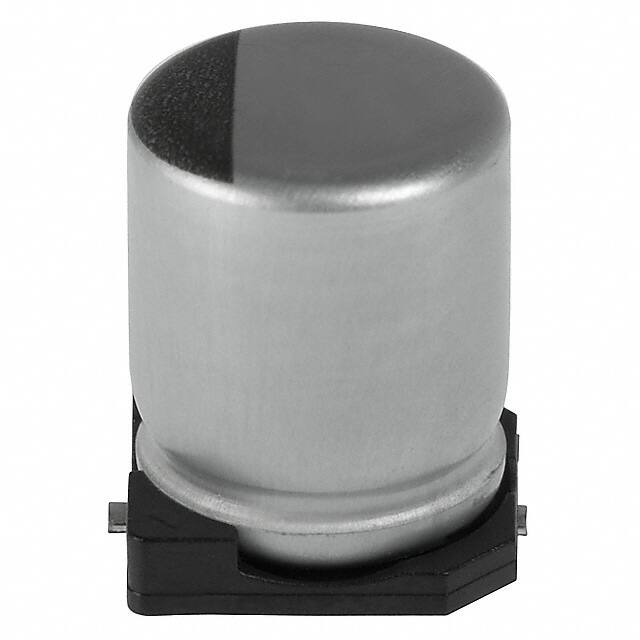

EMZA500ADA221MJA0G

Teknik Özellikler

Uzunluk

11mm

Voltage Rated Dc

50V

Kurşunsuz

Lead Free

Genişlik

10.3mm

Çalışma Sıcaklığı

-55°C~105°C

Esr Equivalent Series Resistance

180mOhm

Lead Diameter

1.1 mm

Capacitor Type

ALUMINUM ELECTROLYTIC CAPACITOR

Life Hours

2000 hours

Size Code

4341

Leakage Current

3μA

Maks. Oturma Yüksekliği

0.394 10.00mm

Terminal

SMD/SMT

Ambalaj

Tape & Reel (TR)

Yükseklik

10mm

ECCN Kodu

EAR99

Parça Durumu

Active

Terminal Sayısı

2

Dielectric Material

Aluminium

Kapasitans

220μF

Ripple Current Low Frequency

335mA @ 120Hz

Fabrika Tedarik Süresi

16 Weeks

Ripple Current High Frequency

670mA @ 100kHz

Montaj Tipi

Surface Mount

Packing Method

TR

Kılıf / Paket

Radial, Can - SMD

RoHS Durumu

ROHS3 Compliant

Seri

Alchip™- MZA

Lead Pitch

4.5mm

Gerilim

50V

Terminal Kaplaması

Tin/Bismuth (Sn/Bi)

Çap

10mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Empedans

180mOhm

Ripple Current

670mA

Boyut / Ölçü

0.394Dia 10.00mm

Applications

Automotive

Surface Mount Land Size

0.406Lx0.406W 10.30mmx10.30mm

Additional Feature

SOLVENT PROOF, RIPPLE CURRENT AND ESR IS MEASURED AT 100KHZ

Tolerans

±20%
