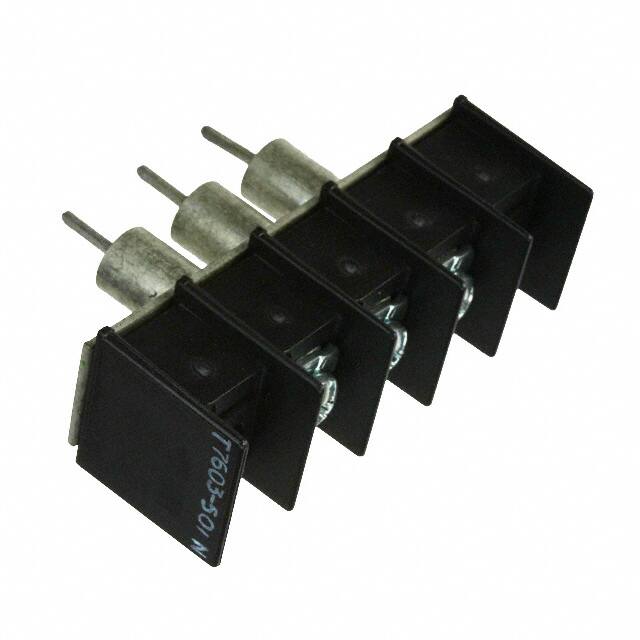

7603-501NLF

Teknik Özellikler

Pozisyon Sayısı

3 Position

Parça Durumu

Active

Pitch

0.437 11.10mm

Top Termination

Screws with Captive Plate

Minimum Operating Temperature

- 40 C

Nominal Gerilim

250V

ECCN Kodu

EAR99

Barrier Type

2 Wall (Dual)

Product Length

12 mm

Genişlik

16.51mm

Material Flammability Rating

UL94 V-0

Ürün Tipi

Barrier Terminal Blocks

Yayın Yılı

2007

Contact Materials

Phosphor Bronze

Number Of Ways

3

Ambalaj

Tray

RoHS Durumu

RoHS Compliant

Body Orientation

Straight

Flammability Rating

UL94 V-0

Akım Değeri

20A

Uzunluk

57.15mm

Material Insulation

Polybutylene Terephthalate (PBT)

Contact Gender

Socket

Safety Approval

UL

Contact Plating

Tin

Terminal Stili

Screw

Montaj

Chassis, Panel

Yükseklik

39.62mm

Tip

Wire-to-Board

Mounting

Surface Mount

Özellikler

Filter 2000pF, Flange

Additional Feature

PBT, 94V-0

Voltage Rating

250 V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Maks. Çalışma Sıcaklığı

+ 105 C

Housing Material

Thermoplastic

Montaj Stili

Through Hole

Montaj Tipi

Chassis, Panel

Bottom Termination

PC Pin

Basehousing Material

Polyphthalamide
