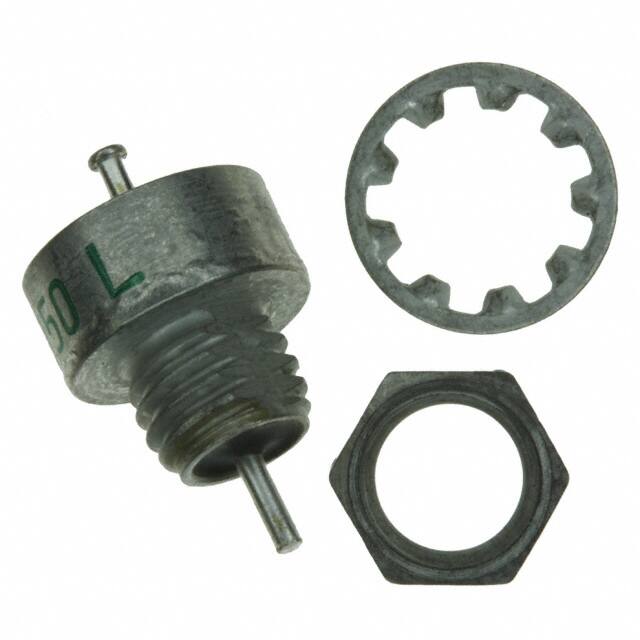

4600-050LF

Teknik Özellikler

Product Height Mm

8.26(mm)

Tip

Coaxial Broadband Filter

Thread Size

1/4-28

Operating Temperature Min Deg C

-55C

Seri

4600

Temperature Coefficient

X7W

Nominal Gerilim

16V

Kılıf / Paket

Axial, Bushing, 1 Turret Lead

Kurşunsuz Kodu

yes

Boyut / Ölçü

0.385Diax0.362L 9.78mmx9.20mm

Maximum Dc Current

15 A

Voltage Rating

100 V

HTS Kodu

8504.50.80.00

Physical Dimension

9.78X17.6 m

Lead Free Status Rohs Status

Lead free / RoHS Compliant

Fonksiyon Sayısı

1

Montaj

Panel, Through Hole

Product Length Mm

9.78(mm)

Yükseklik

9.1948mm

Çalışma Sıcaklığı

-55°C~125°C

Max Current Rating

15A

Çap

9.78mm

Current Rating Max

15(A)

Kapasitans

1.4μF

Insertion Loss

70dB @ 1GHz

Ambalaj

Bulk

Tolerans

-20%, +80%

Yayın Yılı

2005

Fabrika Tedarik Süresi

18 Weeks

Operating Temp Range

-55C to 125C

Dc Resistance Dcr Max

0.01Ohm

Max Dc Current

15A

Additional Feature

WITH SILVER PLATED HEX NUT AND WASHER

Maks. Çalışma Sıcaklığı

+ 125 C

RoHS

Compliant

Applications

General Purpose

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Chassis Mount

Terminal

PC Pins

Maximum Voltage Rating

100 Vdc
