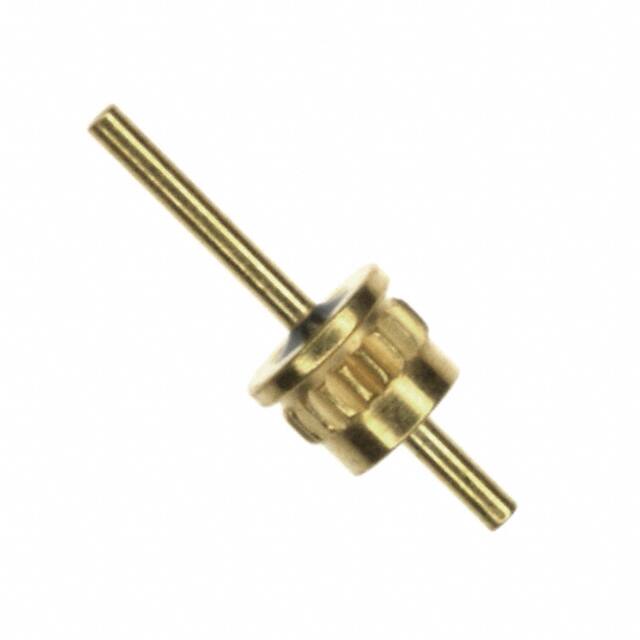

4306-016LF

Teknik Özellikler

Rated Current

5A

Applications

General Purpose

Fonksiyon Sayısı

1

Ambalaj

Bulk

RoHS Durumu

RoHS Compliant

Montaj Tipi

Through Hole

Yükseklik

2.794mm

Tolerans

0% +100%

Voltage Rating

200 V

Seri

4306

Ripple Current High Frequency

163.8mA @ 100kHz

Çap

3.7084mm

Parça Durumu

Active

Radyasyon Dayanımı

No

JESD-609 Kodu

e4

HTS Kodu

8504.50.80.00

Insertion Loss

15dB @ 100MHz

Montaj

Panel, Through Hole

Lifetime Temp

2000 Hrs @ 105°C

Terminal Kaplaması

Gold (Au)

Insulation Resistancemin

10000MOhm

Minimum Operating Temperature

- 55 C

Max Voltage Rating Dc

300V

Kılıf / Paket

Axial, Press Fit

Yayın Yılı

2009

Gerilim

300V

Kurşunsuz Kodu

yes

Terminal

PC Pins

Ripple Current Low Frequency

91mA @ 120Hz

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization

Polar

Kapasitans

500pF

Max Current Rating

5A

Filter Type

FEED THROUGH CAPACITOR

Esr Equivalent Series Resistance

24.868 Ohm @ 120Hz

Lead Spacing

0.138 (3.50mm)

Nominal Gerilim

200V

Fabrika Tedarik Süresi

18 Weeks

Additional Feature

C-TYPE CIRCUIT

Maks. Oturma Yüksekliği

0.512 (13.00mm)
