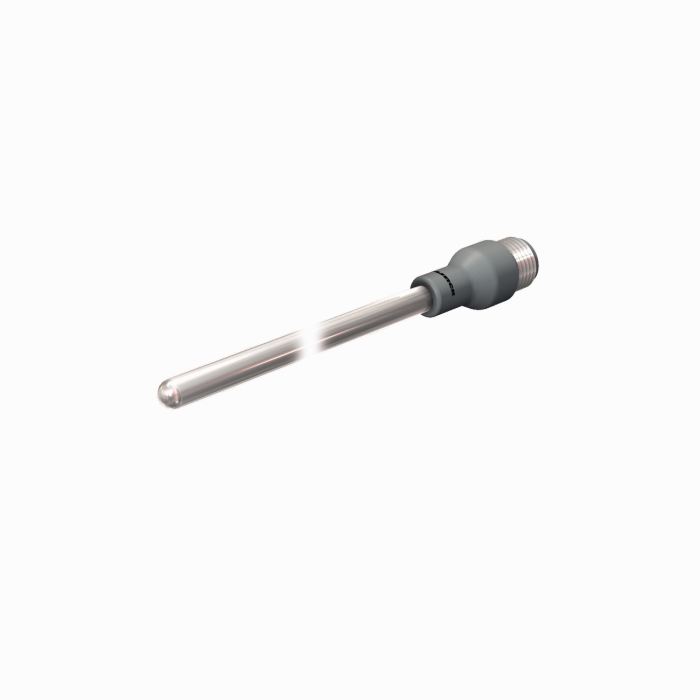

TP-206A-CF-H1141-L550

Teknik Özellikler

Process Connection

For compression fittings, thermowell or direct mounting

Design

Temperature probe

Electrical Output

Resistance

Measuring Range

-50…500 °C

Eclsscode V514

27200208 -/- Temperature measurement electrical complete

Ambient Temperature

-40…+120 °C

Immersion Depth L

550  mm

Manufacturer Id

9910729

Country Of Origin

IT

Customs Tariff Number

90251900900

Ean

4047101286656

Measuring Element

Pt100

Electrical Connection

Connector, M12 × 1

Housing Material

Stainless steel, 1.4404 (AISI 316L)

Detection Type

medium contact

Protection Class

IP67

Approvals

cULus

Weight

96 g
