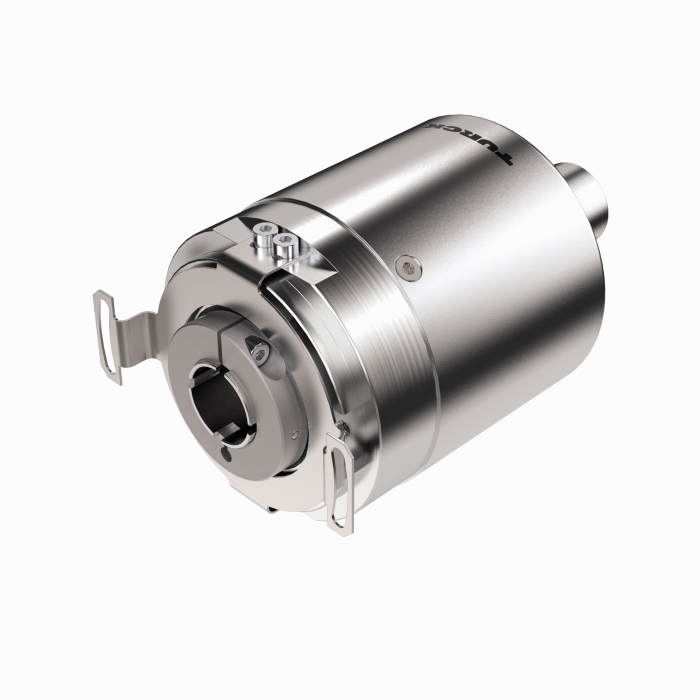

RS-108CA3E-9N19B-B3M12

Teknik Özellikler

Eclsscode V514

27270501 -/- Encoder, absolute

Shaft Diameter D

0.5 in

Housing Material

Aluminium

Shaft Diameter D Mm

12.7

Protection Class

IP65

Flange Diameter

Ø  63 mm

Operating Voltage

10…30 VDC

Manufacturer Id

200010800

Measuring Range

0…360°

Shaft Type

Blind hole shaft

Encoder Line

Industrial-Line

Electrical Connection

Connector, 3 x M12

Çıkış Tipi

Absolute singleturn

Flange Type

Flange with stator coupling

Ambient Temperature

-40…+80 °C

Communication Protocol

EtherNet/IP

Protection Class Shaft

IP65
